Registering your STREAM:RASTER WMTS and/or WMS layers in ArcGIS Online (AGOL) or ArcGIS Enterprise Portal content library allows you to use the layers as you would other data hosted in your ArcGIS environment. After registering your layer(s), you'll be able to add them to maps and share them within your organization and with the public.
Get Started
To register your STREAM:RASTER layers, you'll need:
- A valid API Key
Add New Item

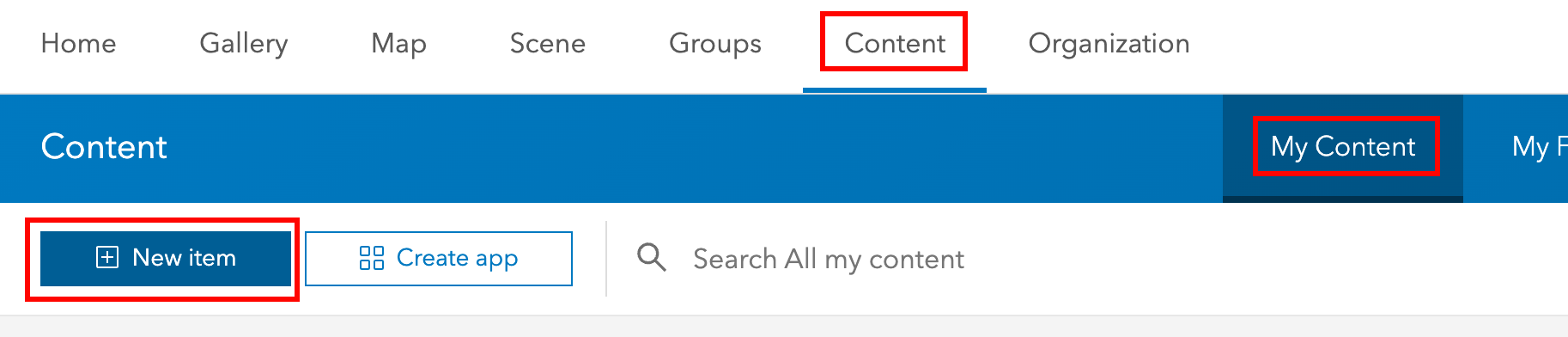

From the My Content tab of your dashboard, click the + New Item button:
Then, in the "New Item" dialog, select URL:
Enter URL

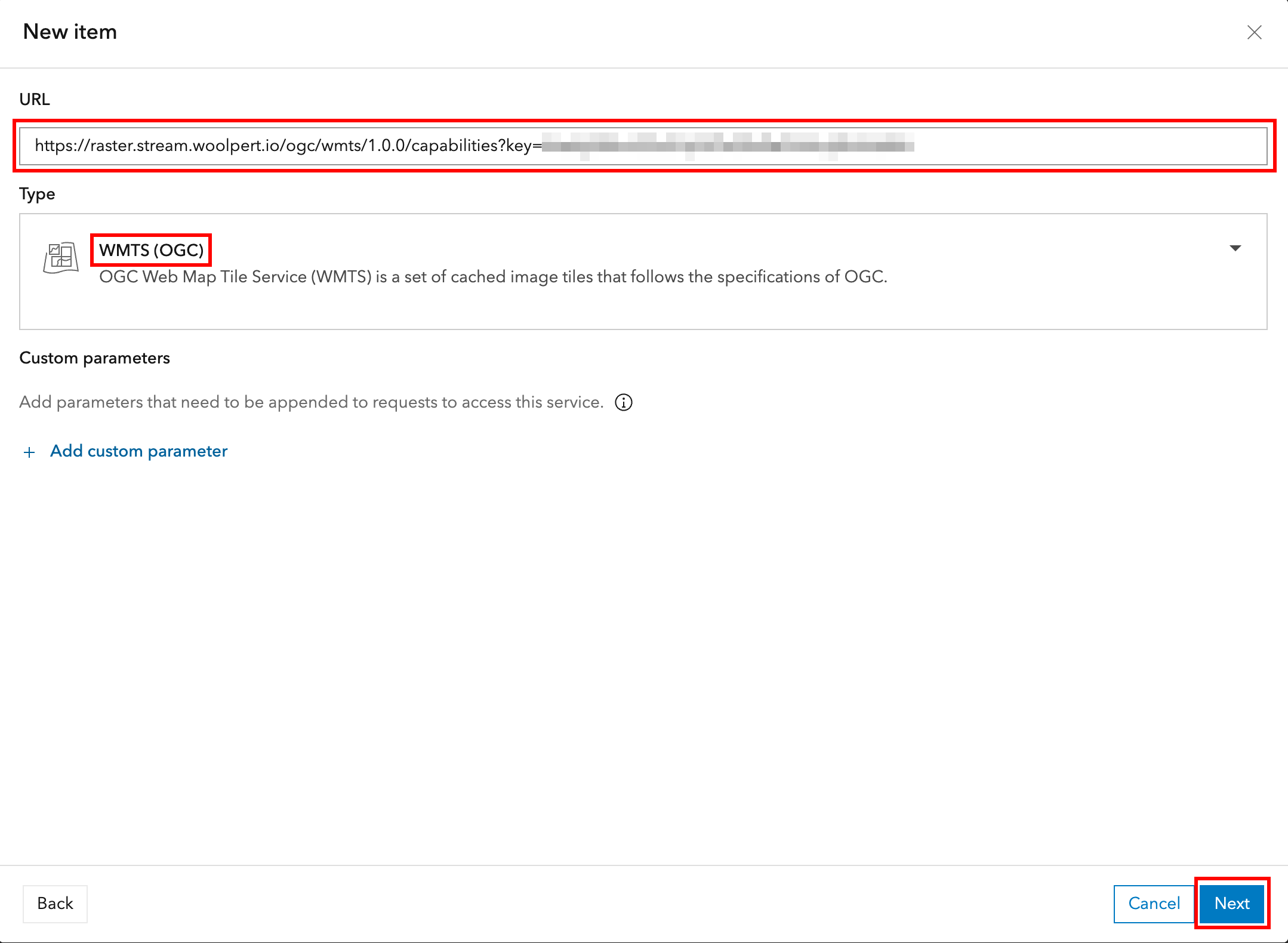

On the next screen of the "New Item" dialog, enter the STREAM:RASTER WMTS or WMS URL (see below), making sure to include your API Key in the "key=" parameter:
Web Map Tiled Service (WMTS) - Recommended
https://raster.stream.woolpert.io/ogc/wmts/1.0.0/capabilities?key={API_KEY}
Web Map Service (WMS) - Dynamic
https://raster.stream.woolpert.io/ogc/wms?key={API_KEY}
After entering the URL, ArcGIS will automatically recognize the service as either "WMTS (OGC)" or "WMS (OGC)". Leave the "Custom parameters" section empty and click Next.

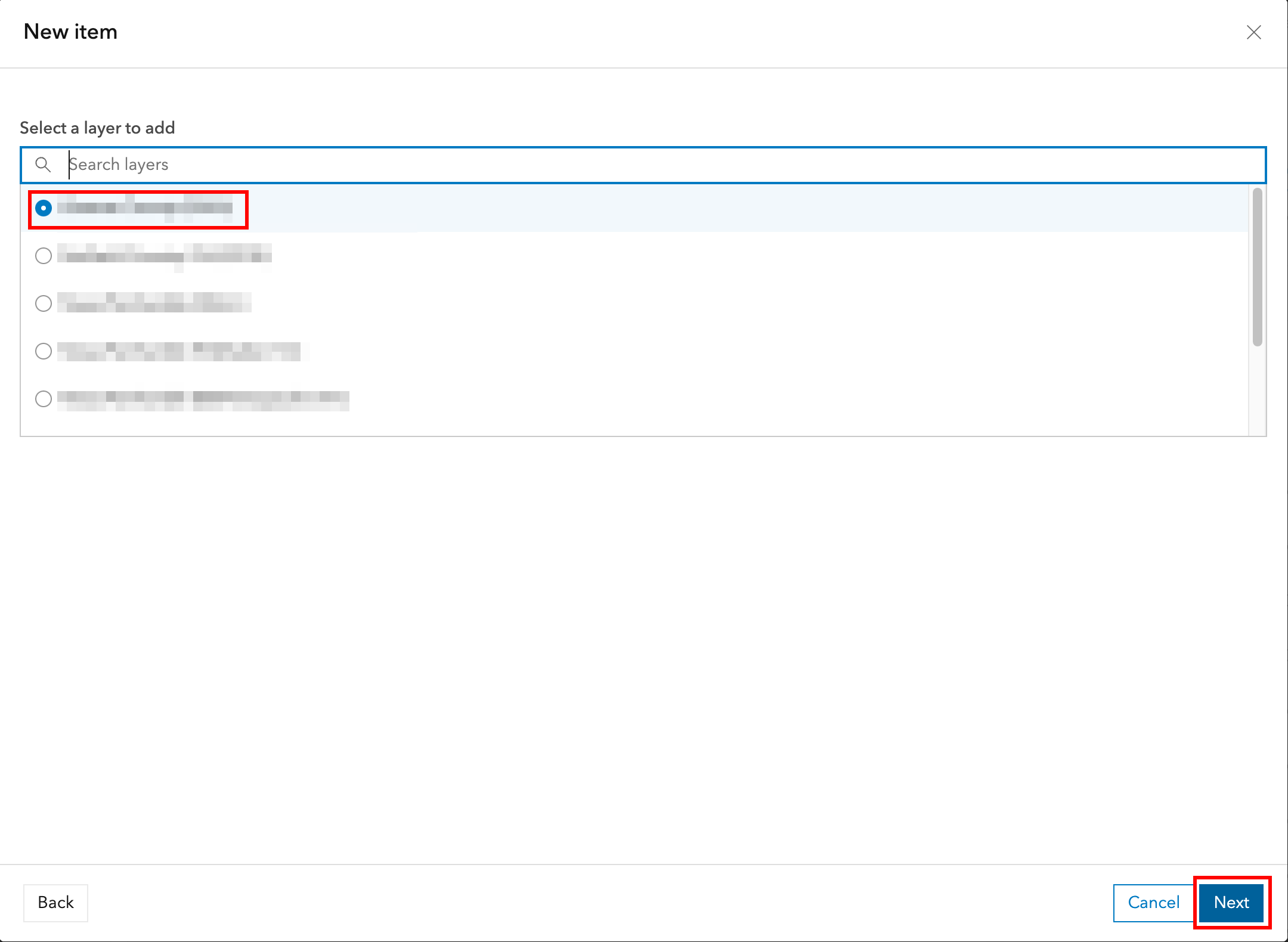

Select Layer
ArcGIS will retrieve the listing of layers available in your subscription. Select the layer you wish to register in your content library from the "Select a layer to add" box and click Next.
WMTS
WMS
📝 It is possible to select multiple layers from this list. Doing so will create a composite layer with the selected layers superimposed on each other. If want to view the layers individually, only select one item from this list and register each WMS layer as a separate content item.

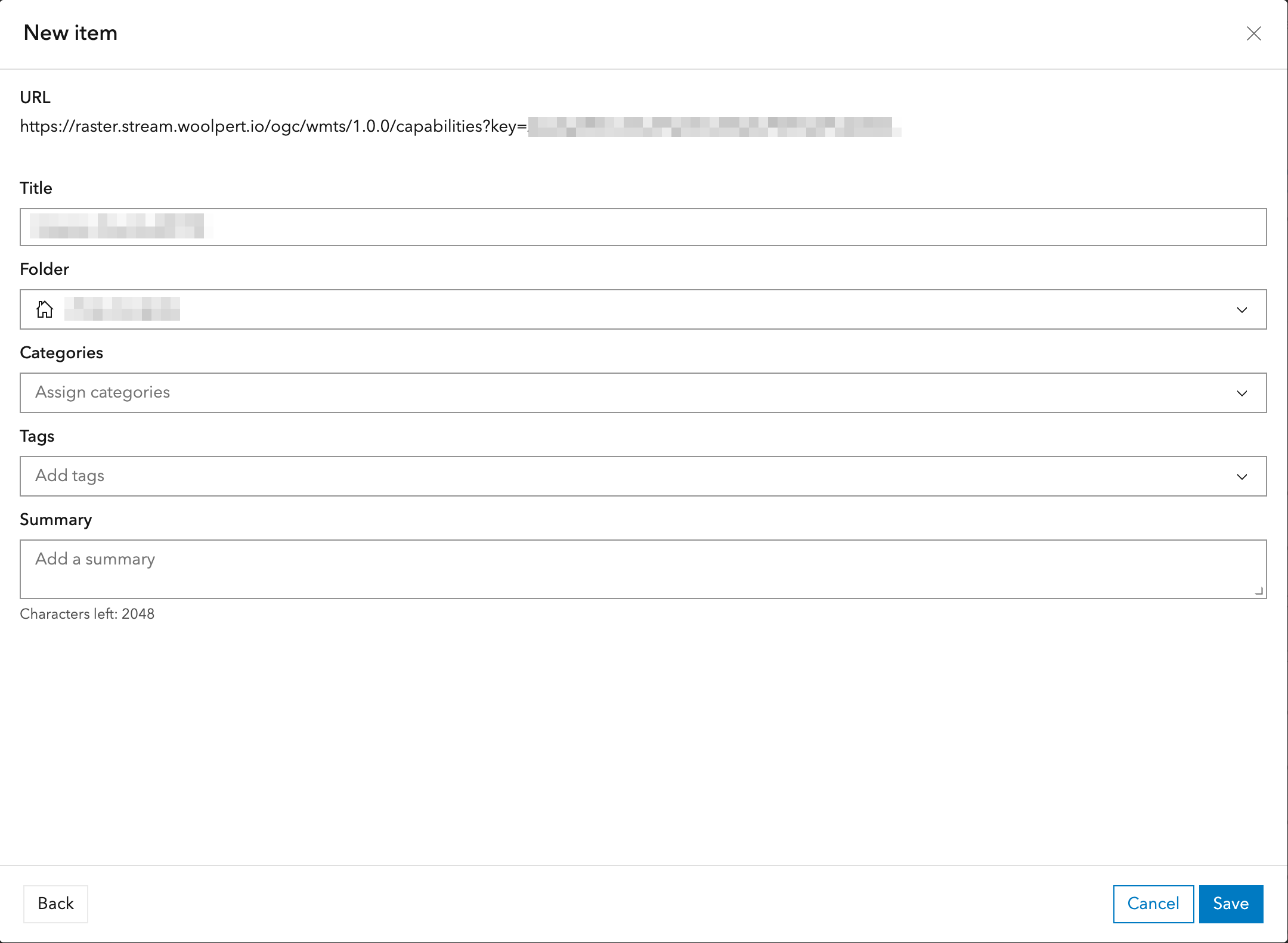

Metadata
Finally, fill out the Title, Folder and optional Categories, Tags, and Summary fields in the metadata form and click Save.
The newly added layer will then be available in your My Content tab.
